Waveserver

Una familia de dispositivos de transporte modulares, compactos y de gran capacidad

La familia Waveserver® de plataformas apilables de interconexión ofrece más capacidad y menor consumo de energía para aplicaciones de gran crecimiento y uso intensivo de ancho de banda.  La familia Waveserver brinda escalabilidad masiva para cumplir con las crecientes necesidades de capacidad de las aplicaciones en la nube y los servicios de datos más exigentes. Con un modelo operativo simple, similar al de un servidor, que utiliza la programabilidad de las API abiertas, la familia Waveserver facilita la integración de plataformas y los despliegues de gran volumen.

Familia de productos | Waveserver 5 | Waveserver Ai

Capacidad sin precedentes. Densidad. Eficiencia energética.

Reduzca el costo por bit y reduzca el consumo de energía con la tecnología coherente WaveLogicTM de alto rendimiento de Ciena, integrada a la familia Waveserver. Garantice el funcionamiento eficaz de todos los enlaces de red con ópticas coherentes altamente sintonizables, compatibles con velocidades de línea de longitud de onda única de hasta 1,6 Tb/s.

Funcionamiento sencillo. Integración simplificada

Supere fácilmente los retos de automatización e integración utilizando las API abiertas estándar del sector y los modernos modelos de datos de la familia Waveserver para permitir la telemetría de streaming, la configuración declarativa y la programabilidad de las plataformas.

Máximo rendimiento. En cualquier distancia.

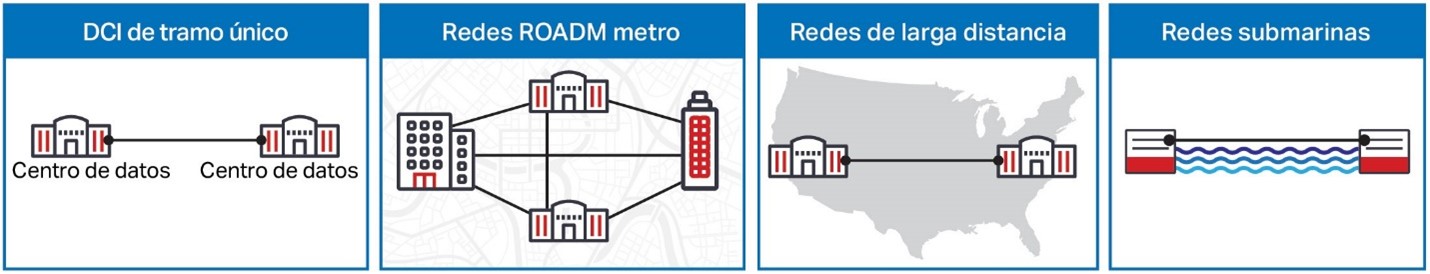

Elimine las limitaciones de escalabilidad con un alto rendimiento que ofrece más capacidad para aplicaciones de cualquier distancia, incluida la DCI de un solo tramo, las redes ROADM metropolitanas, las rutas de larga distancia y los enlaces los submarinos.

waveserver5

Waveserver 5

La plataforma de interconexión compacta Waveserver 5 está optimizada para aplicaciones de 100 GbE y 400 GbE y ofrece capacidades de escalabilidad inigualables con hasta 12,8 Tb/s de capacidad en el lado del cliente y 12,8 Tb/s en el lado de línea en un tamaño compacto de 2RU.

Waveserver Ai

Waveserver Ai

Con una capacidad de hasta 2,4 Tb/s en una sola unidad de rack, que se combina con un modelo operativo sencillo de desplegar, Waveserver Ai ofrece la programabilidad, escalabilidad y sencillez necesarias para las aplicaciones de interconexión global.

Características

No. 1

Brinda escalabilidad masiva y alto rendimiento con la innovadora tecnología coherente WaveLogic de Ciena

No. 2

Ofrece capacidades únicas y líderes por longitud de onda, de hasta 1,6 Gb/s

No. 3

Aumenta la capacidad total de fibra con una mayor eficiencia espectral y soporte para la banda C y L

No. 4

Ofrece consumo por bit ultrabajo para reducir los costos fijos de energía

No. 5

Brinda un conjunto de interfaces de gestión y API abiertas para automatización, aprovisionamiento, programabilidad de gestión y facilidad de integración back-office

No. 6

Zero-Touch Provisioning (ZTP) simplifica la puesta en marcha y aprovisionamiento de servicios en el sitio para que el tráfico comience a funcionar rápidamente

Especificaciones

  • + Waveserver 5
    • Waveserver 5 Modules

      • Dual modem (2 x 800 Gb/s) C-band or L-band double-width module:
        • Provides sixteen QSFP28 ports supporting 100GbE/OTU4 and four QSFP-DD ports supporting 400GbE for up to 1.6 Tb/s of client capacity; supports client OPS protection
        • Provides two coherent ports for up to 1.6 Tb/s of line capacity
      • Dual modem (2 x 800 Gb/s) C-band doublewidth module with encryption:
        • Provides sixteen QSFP28 ports supporting 100GbE/OTU4 and four QSFP-DD ports for up to 1.6 Tb of cleartext client capacity
        • Provides two coherent ports for up to 1.6 Tb of encrypted line capacity
        • Offers AES-256-GCM wire-speed encryption
      • Dual modem (2 x 800 Gb/s) C-band doublewidth module:
        • Provides twelve QSFP28 ports supporting 100GbE/OTU4 and four QSFP-DD ports supporting 400GbE and 400ZR as a client for up to 1.6 Tb of client capacity
        • Provides two coherent ports for up to 1.6 Tb of line capacity
      • Three port 400G QSFP-DD DCO double-width module:
        • Provides three QSFP-DD coherent pluggable ports for up to 1.2 Tb of line capacity
        • Provides twelve QSFP28 and three QSFP-DD client ports supporting up to 1.2 Tb of client capacity
      • Two port 400G CFP2-DCO double-width module:
        • Provides two CFP2-DCO coherent pluggable ports for up to 800 Gb of line capacity
        • Provides eight QSFP28 ports supporting 100GbE/OTU4 and two QSFP-DD ports for up to 800 Gb of client capacity
      • Optical Protection Switching (OPS) doublewidth carrier module:
        • Supports up to three OPS submodules
        • Each submodule provides OPS for two interfaces
        • Fully filled the OPS module supports protection switching for six interfaces

      Physical dimensions

      • 88 mm (H) x 444 mm (W) x 594 mm (D)
      • 3.47 in (H) x 17.48 in (W) x 23.39 in (D)

      Weight

      • Common equipment: 16.4 Kg; 36.2 lb
      • Full-fill with double-width module: 26 Kg; 57.3 lb

      Shelf capacity

      • Eight slots, supporting a mix of up to eight single-width or four double-width modules
      • Client capacity: Up to 64 x QSFP28 with 100GbE/OTU4 clients or up to 16 x QSFP-DD with 400GbE clients
      • Line ports support the following rates: 200 Gb/s to 800 Gb/s
      • Maximum capacity per fiber:
        • 38.4 Tb/s (C-band DCI)
        • 33.6 Tb/s (C-band Flexible grid ROADM-based networks)
        • 67.2 Tb (C&L-band Flexible grid ROADM-based networks)

      Common equipment

      • Redundant/field-replaceable power supply
      • Field-replaceable fan unit
      • Power options: AC or DC power
        • AC PSU input power range:
          • 2KW: input 90Vac to 180Vac
          • 3KW: input 180Vac to 305Vac
          • 3KW: input 180Vdc to 300Vdc
        • DC PSU:
          • 2.3KW: input -40Vdc to -72Vdc
      • Power consumption (excluding client plugs): 2KW with four double-width modules

      Management

      • CLI, SNMP v2c, SNMPv3, SSH, HTTPS, TLS
      • API: Websocket, RESTCONF, NETCONF, gRPC based on OpenConfig YANG models, Streaming Telemetry and Declarative Configuration
      • Ciena’s Manage, Control and Plan (MCP)
      • Node Essentials web-based nodal UI
      • Zero-Touch Provisioning (ZTP), 100GbE/400GbE Integrated Test Set, LLDP client topology discovery, remote management

      Security

      • TACACS+, RADIUS, RADSec
      • AES-256-GCM wire-speed encryption, Preshared key authentication, fast key rotation
      • Designed to FIPS 140-3 Level 2 specifications, undergoing FIPS and CC validati

      Environmental characteristics

      • Normal operating temperature: -5°C to +45°C; 23°F to 113°F
      • Operating humidity: 93% maximum
  • + Waveserver Ai
      • Waveserver Ai modules
      • Dual modem (2 x 400 Gb/s) C-band or L-band module:
        • Provides eight QSFP28 ports supporting 100GE, OTL4.4 for up to 800 Gb/s of client capacity
        • Provides two coherent ports for up to 800 Gb/s of line capacity
      • Single modem (1 x 400 Gb/s) C-band module:
        • Provides four QSFP28 ports supporting 100GE, OTL4.4 for up to 400 Gb/s of client capacity
        • Provides one coherent port for up to 400 Gb/s of line capacity
        • Optimized cost for lower traffic applications
      • 400G Encryption (1 x 400 Gb/s) C-band module:
        • Provides four QSFP28 ports supporting 100GE for up to 400 Gb/s of client capacity
        • Provides one coherent port for up to 400 Gb/s of encrypted line capacity
        • Provides full throughput, Layer 1 encryption for all in-flight data
      • 40x10G Single modem (1 x 400 Gb/s) C-band module:
        • Provides ten QSFP+ ports supporting 4x10GE and 4 QSFP28 ports supporting 100GbE for up to 400 Gb/s of client capacity
        • Provides one coherent port for up to 400 Gb/s of line capacity
        • Supports mix of 10 and 100 Gb/s clients
      • Single modem (1 x 800 Gb/s) C-band module:
        • Provides eight QSFP28 ports supporting 100GbE and OTL4.4; two client ports also support QSFP-DD for 4 x 100GbE and 400 GbE clients with a total client capacity of up to 800 Gb/s
        • Provides one coherent port for up to 800 Gb/s of line capacity
      • Dual modem (2 x 400 Gb/s) C-band module with Integrated OPS:
        • Provides eight QSFP28 ports supporting 100GE, OTL4.4 for up to 800 Gb/s of client capacity
        • Provides two coherent ports for up to 800 Gb/s of line capacity with integrated OPS enabling per wavelength optical protection
      • CMD4 module:
        • Four channel passive mux/demux module
        • Enables add/drop up to 1.6 Tb/s for point-topoint applications
      • CMD10 module:
        • Ten port mux/demux module with integrated EDFA, bi-directional OSC, and OTDR
        • Enables add/drop up to 4 Tb/s for point-topoint applications

      Physical dimensions

      • 1U 44.45 mm (H) x 444 mm (W) x 584 mm (D)
      • 1U 1.75 in. (H) x 17.48 in. (W) x 22.99 in. (D)

      Weight

      • 9.52 Kg, 21.0 lbs (without modules)
      • 14.92 Kg, 32.88 lbs (with 3 modules, no plugs)

      Capacity

      • Supports three pluggable Waveserver modules
        • Client:
          • Up to 24 x QSFP28 supporting 100GbE or OTL4.4 (OTU4) clients
          • Up to 30 x QSFP+ supporting 4 x 10GbE clients
          • Up to 6 x QSFP-DD supporting 4 x 100GbE or 400GbE clients
        • Line ports support the following rates:
          • 100 to 400 Gb/s at 56Gbaud
          • 100 to 250 Gb/s at 35Gbaud
          • 200 to 800 Gb/s at 95Gbaud
          • 300 to 800 Gb/s at 91.6Gbaud
        • Maximum capacity per fiber:
          • 38.4 Tb/s C-band DCI
          • 33.6 Tb/s C-band flexible grid ROADM-based networks
        • Integrated OPS functionality

      Common equipment

      • Redundant/field-replaceable power supply
      • Field-replaceable fan unit
      • Power options: AC or DC power
      • AC input voltage range: 100 Vac to 264 Vac
      • DC input voltage range: -40 Vdc to -72 Vdc
      • Power consumption: 0.4 W/Gb

      Management

      • CLI, SNMP v2c, SNMPv3, Blue Planet MCP, SSH, HTTPS, TLS
      • API: Websocket, RESTCONF, NETCONF, gRPC based on OpenConfig YANG models, Streaming Telemetry and Declarative Configuration
      • Submarine communications channel
      • Zero-Touch Provisioning (ZTP)
      • Remote management

      Security

      • AES-256-GCM wire-speed encryption, PSK or X.509 certificates, FIPS 140-2 Level 2 and Common Criteria certified, Secure memory wipe, Secure boot, RADIUS, TACACS+

      Environmental characteristics

      • Normal operating temperature: 0 °C to +40 °C (32 °F to 104 °F)
      • Normal operating humidity: Between 5% and 85%
